Awesomatix Upper Arm Holder x 2 (A800-AM19-LTL)

AM19-LTL Upper Arm Holder x 2

In normal positions these holders provide +1mm longer top link compared to AM19R.

Reverse mounting is also possible to get extra long top links which are ~10mm longer than AM19R.
(requires optional AT25-2 turnbuckles!).

It also offers an intermediate mounting position which provides ~8mm longer top links.
AM19-LTL should be mounted reverse for that. One link mounted on the AM19-LTL and the other link on the Bulkhead.
(requires optional AT25-2 turnbuckles!).

+1mm longer top links layout with AM19-LTL is recommended for carpet tracks.
+10mm and +8mm extra long top links layout with AM19-LTL is recommended for asphalt tracks.

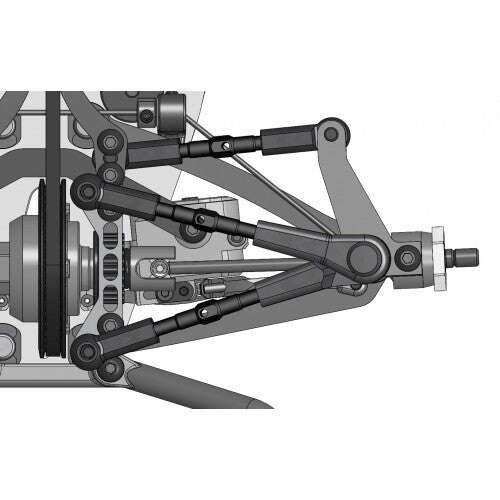

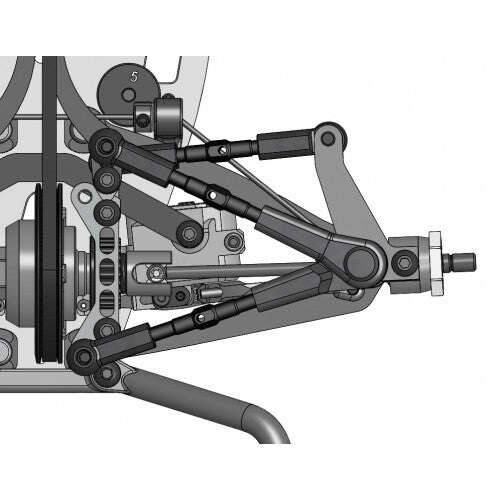

See the product pictures for reference of the mounting positions.

contains: 2x AM19-LTL
