Roll Centre Shim Plate Set for Awesomatix A800R

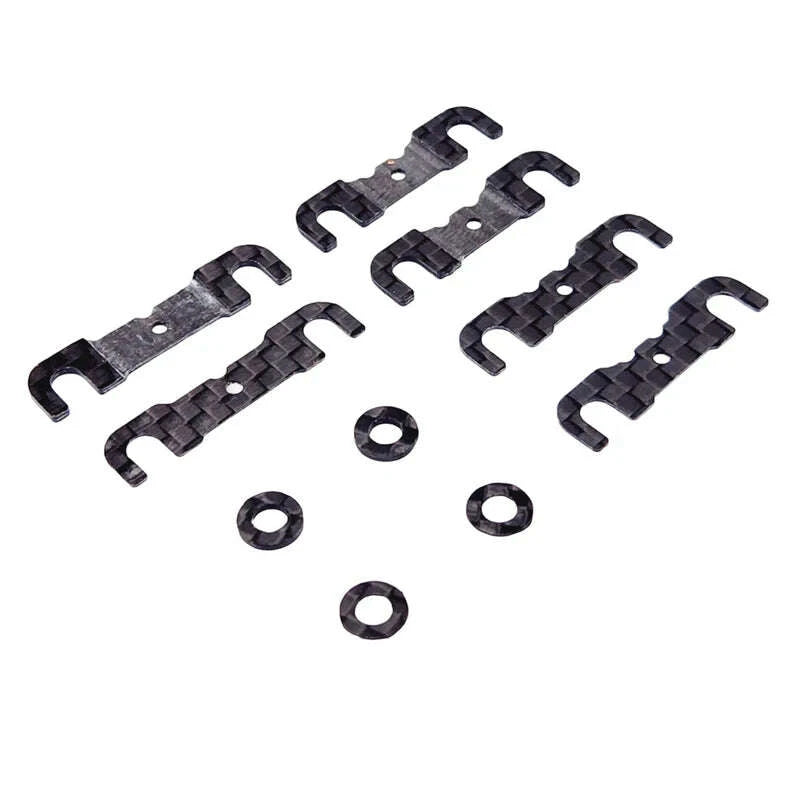

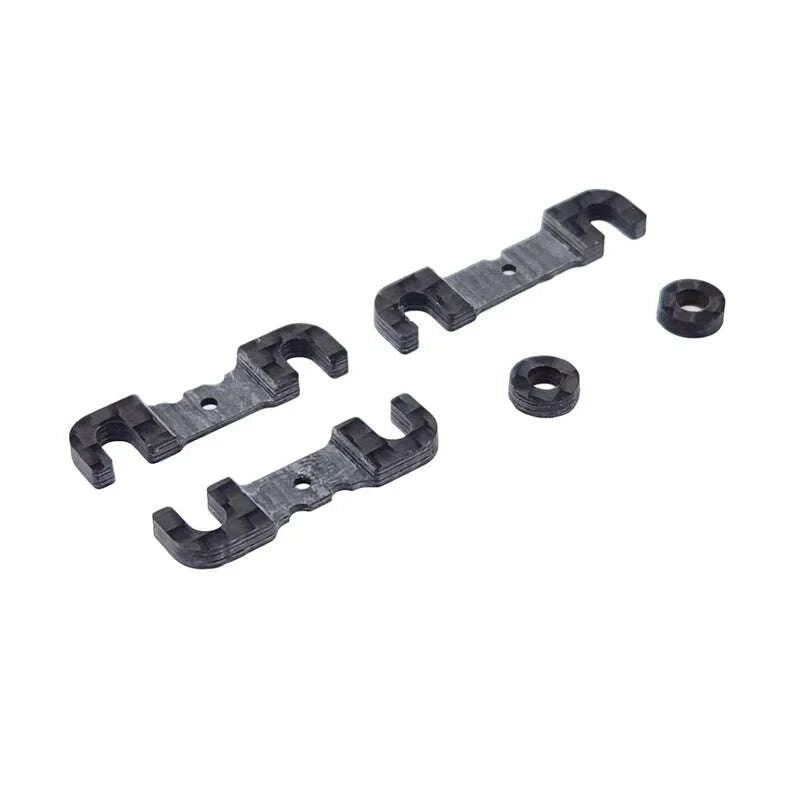

Our brand new Roll Centre Shim Plates for Awesomatix A800R are constructed from carbon fibre and make changing the lower roll centre on your Awesomatix a breeze! Consisting of 2mm thickness, it allows tuning from 2mm and onwards. The plates also have a front and a rear, with little notches to distinguish them, due to the hole spacing being wider in the front.

All except the front of the front slide in without the removal of your screw, allowing you to slide out the old and in the new in a matter of seconds. Once the plate is installed simply tighten as normal.

The plates are used on the FR, RF and RR positions in the car, with normal shape carbon shims supplied for the very front. These are easily removed by removing the bumper, and using plates here was not possible due to the design.

The central hole allows easy removal by inserting a 1.5mm driver and sliding them out from the top.

These can be combined together with our 0.5/1mmmm Shim Plate Set to achieve fine adjustment of roll centres above 2mm until 3.5mm.
