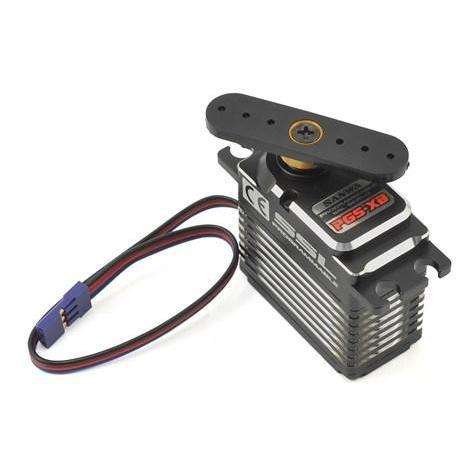

Sanwa PGS-XB Programable SSL Servo

by Sanwa
Sold out
Original price $205.00 - Original price $205.00
Original price
$205.00
$205.00 - $205.00
Current price $205.00

Sanwa PGS-XB High Torque Brushless Servo.

Features:

  • SSL-Compatible Programmable Servo
  • Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
  • Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
  • PGS Setting Gear-Compatible
  • Super Response (SSR) Mode-Compatible
  • High Response (SHR) Mode-Compatible
  • LiPo 2S Compatible
  • Low Profile
  • High Speed
  • Brushless Motor
  • Full Aluminum Case
  • Full Metal Gears (Strengthening Gears)
  • Aluminum Heat Sink
  • Programmable Servo to be compatible with SSL & Telemetry at Launch
  • Setting Adjustment by wireless from Radio
  • Setting Adjustment to connect Servo with Setting Gear
  • Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.
  • Initial Setting on Setting Gear is necessary

Specifications:

  • Speed:
    • @7.4V: 0.11sec/60°
    • @6.0V: 0.14sec/60°
  • Torque:
    • @7.4V: 293 oz-in (21.1 kg-cm)
    • @6.0V: 248 oz-in (17.9 kg-cm)
  • Dimensions: 40.2x20.5x38.7mm
  • Weight: 72g

Setting Items

  • SSL-CH (SSL Channel Setting)
  • STRETC (Stretcher Adjustment)
  • BOOST (BOOST Adjustment)
  • D-Band (Dead Band Adjustment)
  • MV-MID (Middle Torque Adjustment)
  • MV-END (Later Torque Adjustment)
  • BREAK (Break Adjustment)
  • MV-HOLD (Power Adjustment at whole area)
  • MV-FRQ (Feeling Adjustment at whole area)
  • MAX-PW (MAX Duty Adjustment)
