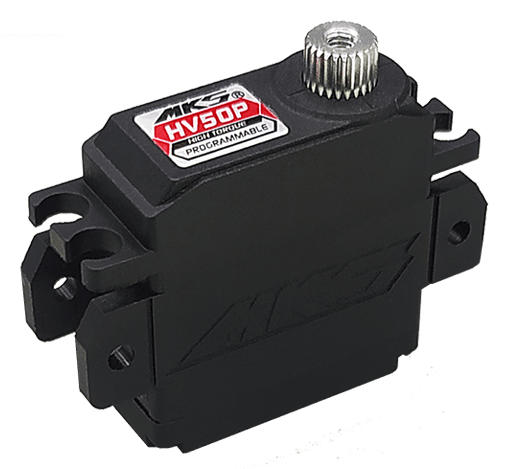

MKS Servos HV50P
by MKS Servos
Sold out
Original price
$100.00
-
Original price
$100.00
Original price
$100.00
$100.00
-
$100.00
Current price
$100.00
| Dead Band | 0.001ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1520μs / 333hz | |
| Operating Voltage | 3.7 ~ 8.4 V DC Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (6V) | 0.097 sec/60° degrees at no load | |
| Operating Speed (7.4V) | 0.079 sec/60° degrees at no load | |
| Operating Speed (8.4V) | 0.071 sec/60° degrees at no load | |
| Stall Torque (6V) | 6.1 kg-cm (84.7 oz-in) | |
| Stall Torque (7.4V) | 7.5 kg-cm (104.1 oz/in) | |
| Stall Torque (8.4V) | 8.3 kg-cm (115.2 oz/in) | |
| Motor Type | Coreless Motor | |
| Potentiometer Drive | Direct Drive | |
| Driver Type | FET | |
| Bearing Type | Dual Ball Bearings | |
| Gear Type | Metal Gears | |
| Programmable | Yes | |
| Dimensions | 27 x 12.1 x 27.7 mm | |
| Weight | 18.1g (0.64 oz) | |
