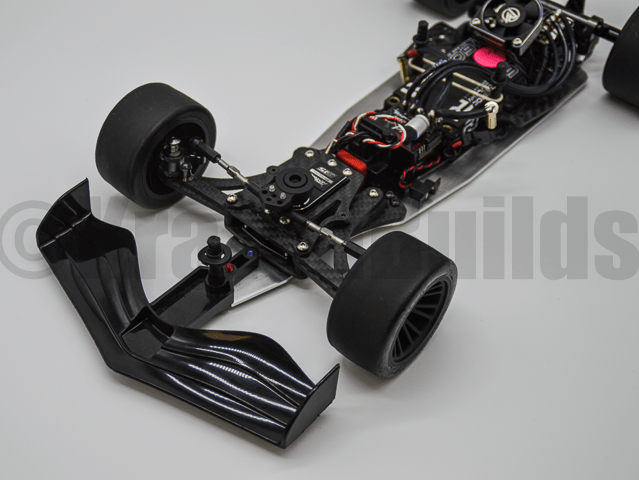

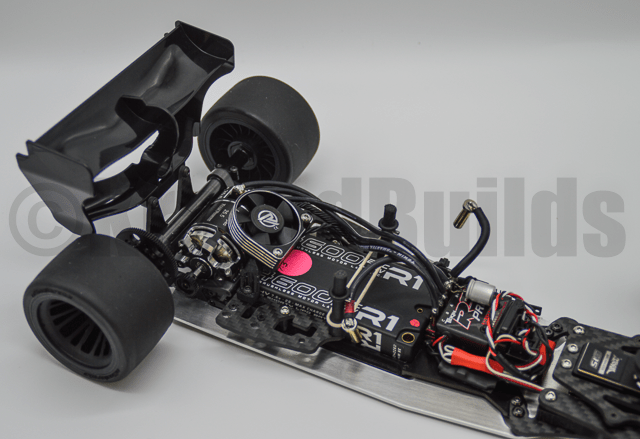

A12F Veyron Kit

Introducing something creative for those drivers who look for uniqueness, we bring the A12F Veyron kit. Designed around the winning Awesomatix A12 platform, now in the form of an F1 competition conversion kit.

Whats Included:

Chassis

• Complete New Alloy 7075  Lower Chassis
• Side Spring and Body Mount Plates

Front End

• Complete Carbon Fiber front lower plate
• 3D printed spacers for ride height
• Carbon Fiber suspension arms
• Carbon Fiber Servo mount plate
• 3D Printed Bearing Adaptors (run 12scale bearings in F1 wheels)

Rear End

• 3D printed spacer to help achieve ride height
• Carbon Fiber Wing Mount

What will be needed:

• A12 Original, WC or X donor car
• Front F1 Wing
• Rear F1 Wing
• F1 body
• F1 rear axle w/hubs
• New side spring perch inserts  (We’ve made a rolling change for the inserts – all kits now will use the A12-DT1213 Alloy inserts)
• All Electronics
• New 1/10 scale servo saver
• Spur (range from mid 80 to mid 95 tooth range depending on wheelbase)
• 2s Lipo pack measuring 93mm in length

2S Lipo List : (will update as we find others to fit the stock tray

• R1Wurks ULCG 4600mah  – Size: L:92.8mm  W:47mm  H:18.4mm
• Team Zombie ULCG 4500mah  – Size: L:92.9mm W:46.5mm H:18.2mm
• Intellect Lipo LiHV 6400mah 2S – Size: L:93mm W:47mm H:25.1mm
• Intellect Lipo LiHV 4600mah 2S – Size: L:93mm W:47mm H:18.5mm
• EZ Power Lipo 4600mah 2S – Size: L:92.5mm W:46.5mm L:18.3mm (check ROAR List for USA Racing)

Synergy F1 Wheel Bearing Adaptor (Aluminum)  – Use 12scale front wheel bearings inside F1 Wheels, no more 3D printed sleeve

Setup Sheets and Driver Library

• Free online editable Setup Sheet and Driver Library

Youtube Videos:

• Explaining some things about the concept creation to how it all go’s together
• First Race Clock run of the production kit
