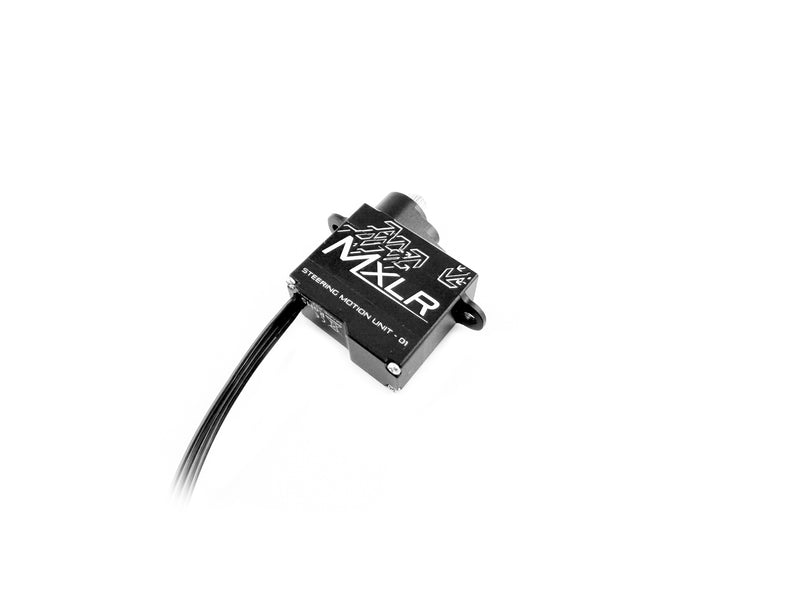

MXLR - MAX-13-004 - Steering Motion Unit SMU-01 - 1:28 Micro Servo
Our MXLR Steering Motion Unit SMU-01 is a digital Hi-Speed servo, selected for the demanding world of 1/28 scale racing - and equally at home in any other class that fits its size and performance window.
When picking a servo for this scale, three things were on top of our list: Reliability, Speed and Power.
The servo is one of the most critical components in your car - it's the direct link between your fingers and the front wheels, and only a precise, repeatable response gives you the feel and control needed to extract the maximum performance out of your car!
On top of that, a compact build and a low overall weight were a must, especially with the tight packaging and weight sensitivity of small scale cars in mind.
The SMU-01 ticks all of these boxes: a High Quality Coreless Motor paired with a High Accuracy Titanium Gear Set running on Ball Bearings, all packed into a Full CNC Aluminum Case.
The result is a servo that delivers razor-sharp response, rock-solid centering and a consistent feel from lock to lock - run after run.
Of course we also paid attention to the small details: the SMU-01 comes in a full black finish with our customized MXLR Laser Engraved branding, paired with a full black 28 AWG wire and a JST 1.5 connector for a clean install!
Highspeed parameter settings: 0.052 sec/60° at 8.4V - exactly the response time you need to keep up with the fast pace of 1/28 racing.
Key features:
- Full Black Servo with customized MXLR Laser Engraved branding
- Full Black Wire - JST 1.5 connector - 55mm length / 28 AWG
- Full CNC Aluminum Case
- High Quality Coreless Motor
- High Accuracy Titanium Gears
- Ball Bearing supported
-20T Spline
Technical Data:
-Dimensions: 20 x 8 x 17.8 mm
- Weight: 7.0 g
- Case: Full CNC Aluminum
- Motor Type: Coreless
- Gear Material: Titanium
- Bearings: Ball Bearing
- Gear Spline: 20T - ɸ4.0 mm
- Connector: JST 1.5 - 55mm length / 28 AWG
- Operating Voltage: 4.8 - 8.4V
- Operating Speed: 0.066 sec/60° @ 6.0V / 0.052 sec/60° @ 8.4V
- Stall Torque: 2.2 kg·cm @ 6.0V / 3.0 kg·cm @ 8.4V
Application range:
1/24, 1/27, 1/28 scale models and comparable vehicles that match the size and performance specs of the SMU-01.
Take care:
- Always make sure the servo and servo horn have full freedom of movement over the complete travel range - check that nothing can block or interfere with the rotation.
- Pay attention to a clean and tidy wire routing to prevent any damage or defects over time.
MAX-13-004 contains:
1x SMU-01 Servo
1x Servo Arm
1x Adapter wire from JST 1.5 connector to JR connector
