MXLR - MAX-13-006 - TURBO MOTOR FAN - 40mm - TURBO MOTOR FAN - 40mm
Heat is the enemy of performance! A motor running too hot fades, loses punch over the run and simply doesn't give you what it's capable of.
Our MXLR Turbo Motor Fans are high speed fans built to deliver maximum airflow and the best possible cooling for today's highly stressed motors. And together with our separately available MXLR FAN BOOSTER, this is THE combo.
The FAN BOOSTER lifts your receiver voltage to 8V, the Turbo Motor Fan turns that into serious airflow - less fading, more consistency, more speed over the full run time. Simple huh?
Both fans run on double ball bearings for smooth, reliable operation and a long lifespan - exactly what you want from a part that spins at over 30.000rpm right next to your motor.
We paid attention to the wiring too: the Turbo Motor Fans come with soft black silicone wire that routes cleanly through your car instead of fighting you at every corner. The wire on the fan itself is approx. 43mm long and ends in a small black male JR connector.You can plug it straight into your receiver - or, our recommendation, directly into the MXLR FAN BOOSTER, where it fits without any issue. An extension wire of approx. 128mm is included in the set, so you can reach whatever mounting position your chassis layout asks for.
And of course the housing carries a decent laser engraved MXLR Logo on the top side. Because details matter.
Technical Data - MAX-13-005 MXLR Turbo Motor Fan 30mm:
- Dimensions: 30 x 30 x 10mm
- Weight: 8.9g
- Speed: approx. 33.500rpm at 8.0V
- Voltage range: 6.0 - 8.7V
- Mounting hole distance: 24.00mm
- Fan wire length: approx. 43mm

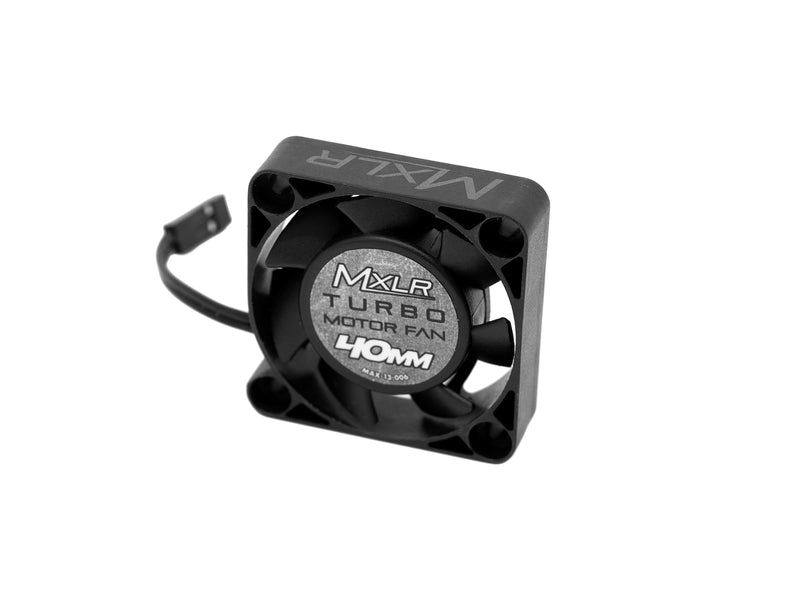

Technical Data - MAX-13-006 MXLR Turbo Motor Fan 40mm:
- Dimensions: 40 x 40 x 10mm
- Weight: 16.0g
- Speed: approx. 24.000rpm at 8.0V
- Voltage range: 6.0 - 8.7V
- Mounting hole distance: 32.00mm
- Fan wire length: approx. 43mm
MAX-13-005 contains:
- 1x MXLR Turbo Motor Fan 30mm
- 1x Extension wire approx. 128mm
MAX-13-006 contains:
- 1x MXLR Turbo Motor Fan 40mm
- 1x Extension wire approx. 128mm
TAKE CARE:
!! Always check the polarity before plugging in the fan!!
!! Make sure the fan blades have full freedom of movement and nothing can block or interfere with the rotation!!
!! Pay attention to a clean and tidy wire routing to prevent any damage over time!!
